Historical SUNON KDE1204PKV2 | Full Option Unverified
- Product SKU: CFS-U001103
- Category: SUNON Cooling Fans
Confirm Fit Before Ordering
Use this quick check first, then review the full Product Specifications tab before placing an order.
Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.
Reference model: Full supplied option unverified; historical base label KDE1204PKV2
Product Specifications
Review the technical data used for replacement matching, procurement comparison and engineering approval.
SUNON KDE1204PKV2 historical label reference

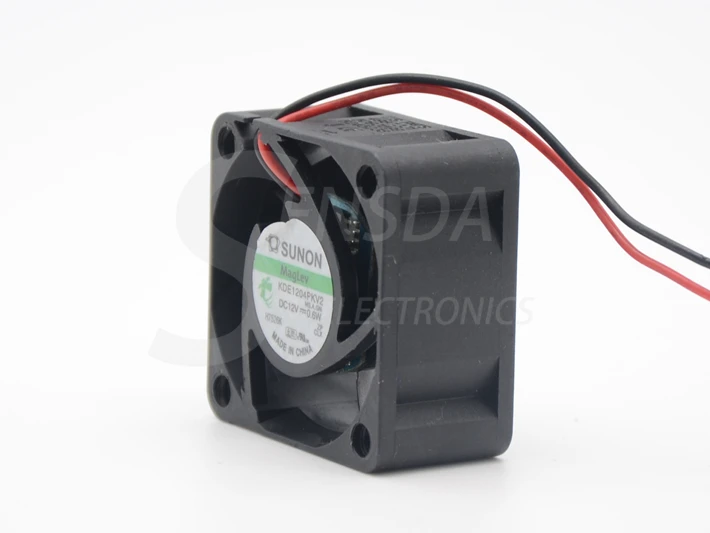

A historical rear-label photograph reads SUNON KDE1204PKV2, DC12V and 0.6W. The complete suffix line is not reliably legible. These are observations from a historical photograph; they do not confirm the full model or rating of the unit currently supplied.
Visible construction and remaining checks
- The historical views show a black square axial fan and red and dark conductor sections entering a pale housing.
- The visible sections do not establish the complete supplied harness, termination, pinout or functions.
- The stored 40x40x20mm size is a historical merchant record. Supplied dimensions, mounting and clearance require confirmation; no measurement is established here.
Before choosing a replacement
Is the complete supplied option confirmed? No. Match the complete current label, suffix, electrical requirements, measured fit and connector before ordering. Do not select an external MS.A.GN or other suffix from an incomplete label.
Does the existing document link verify this option? Its applicability has not been established. The linked PDF could not be read in this review; neither its filename nor the historical photograph establishes the full supplied option or its specifications. Existing document link (applicability unverified).
Send label and connector photos for identification help, or request a wholesale quote. Supplied version, condition and equipment compatibility remain unverified.
Compatibility Verification Checklist
Before ordering, please confirm these critical points:
- 1Exact model number on the original fan label
- 2Frame size: length, width and thickness
- 3Rated voltage and current
- 4Connector type and wire sequence
- 5Wire count: 2-wire, 3-wire or 4-wire PWM
- 6Airflow direction and mounting hole position
- 7Cable length and application environment
Still unsure? Send us photos of your fan label, connector and equipment. We will help check compatibility before you order.
Datasheet / Drawing
Use official documents and dimensional references when available. If a document is missing, contact us before ordering for replacement matching support.
Bulk Order
For repair batches, OEM projects or distributor replenishment, send the model number, target quantity, connector requirements and delivery destination.
Shipping & Returns
Shipping options, lead time and return eligibility may vary by product, quantity and destination. Confirm compatibility before ordering replacement fans.
- For bulk orders, request freight planning and availability confirmation before payment.
- For replacement orders, compare model, size, voltage, current and connector before installation.
- Unused items should remain in original condition for return review according to store policy.
FAQ
Common checks for replacement cooling fan sourcing.
Can you help match an old fan?
Yes. Send photos of the fan label, connector and equipment so we can check model, voltage, frame size and wiring.
Can I use a different brand as a replacement?
Often yes, but only after confirming frame size, electrical rating, airflow requirement, bearing type, connector and wire sequence.
What information is needed for a bulk quote?
Send part number, quantity, target lead time, connector or cable requirements and shipping destination.
