Delta AFB1224HE 24V 0.36A Deep Axial Fan
- Product SKU: CFS-U000624
- Category: 120x120x38mm Cooling Fans, 24V DC Cooling Fans, DC Brushless Fans, Delta Cooling Fans
Confirm Fit Before Ordering
Use this quick check first, then review the full Product Specifications tab before placing an order.
Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.
Reference model: AFB1224HE
Product Specifications
Review the technical data used for replacement matching, procurement comparison and engineering approval.
Delta AFB1224HE 24V 0.36A Deep Axial Fan

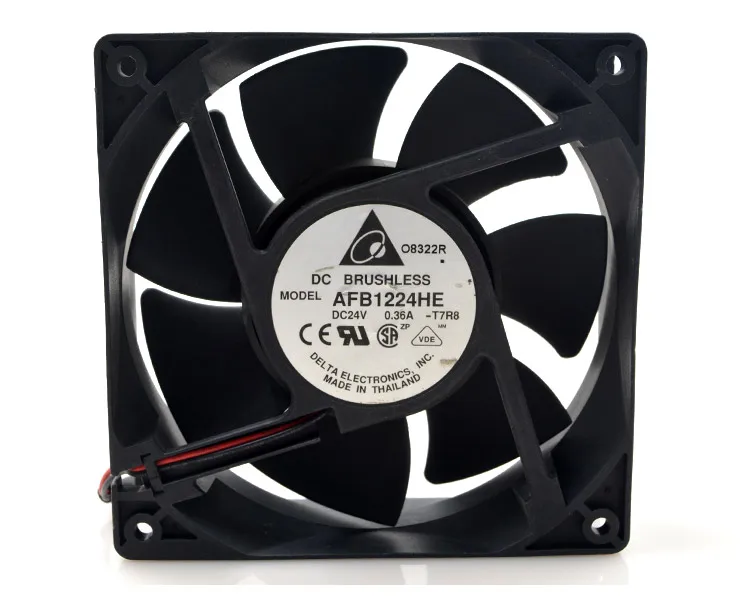

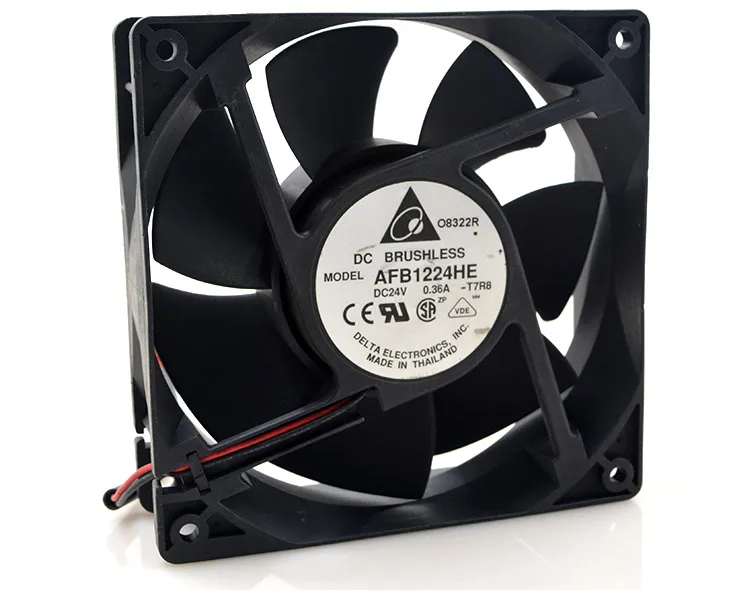

The original label identifies Delta AFB1224HE, DC 24V and 0.36A, with a separate -T7R8 marking. Red and black leads exit the deep square frame. The base manufacturer sheet lists 0.24A input and 0.36A maximum.
| Photographed model | AFB1224HE; separate -T7R8 marking |
|---|---|
| Nameplate input | 24V DC, 0.36A |
| Visible harness | Two red/black leads; red connector is partly visible |
| Base manufacturer reference | 120x120x38mm; 2600 RPM, 105.94 CFM, 0.300 inH2O, 41 dBA average |
| Reference limits | Base document: 7.0-27.6V, 0.24A input / 0.36A maximum; T7R8 approval unconfirmed |
Should the label current be replaced by the base running-current figure?
Keep the distinction between the label and the base specification. The exact T7R8 operating limits, plug and performance require its approval sheet. The catalogue figures are retained as a base reference, not a measurement of the supplied assembly.
Original photograph 1; Original photograph 2; Delta base approval
Send the complete label, connector and mounting photos for matching help. For multiple units, request a quantity quote.
