CoolJag 12V DC Axial Fan with Three-Wire Connector
- Product SKU: CFS-DC-07015-12V-B
- Category: 12 Volt DC Cooling Fans, DC Brushless Fans
Confirm Fit Before Ordering
Use this quick check first, then review the full Product Specifications tab before placing an order.
Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.
Reference model: CFS-DC-07015-12V-B
Product Specifications
Review the technical data used for replacement matching, procurement comparison and engineering approval.
CoolJag 12V DC Axial Fan with Three-Wire Connector identification and selection

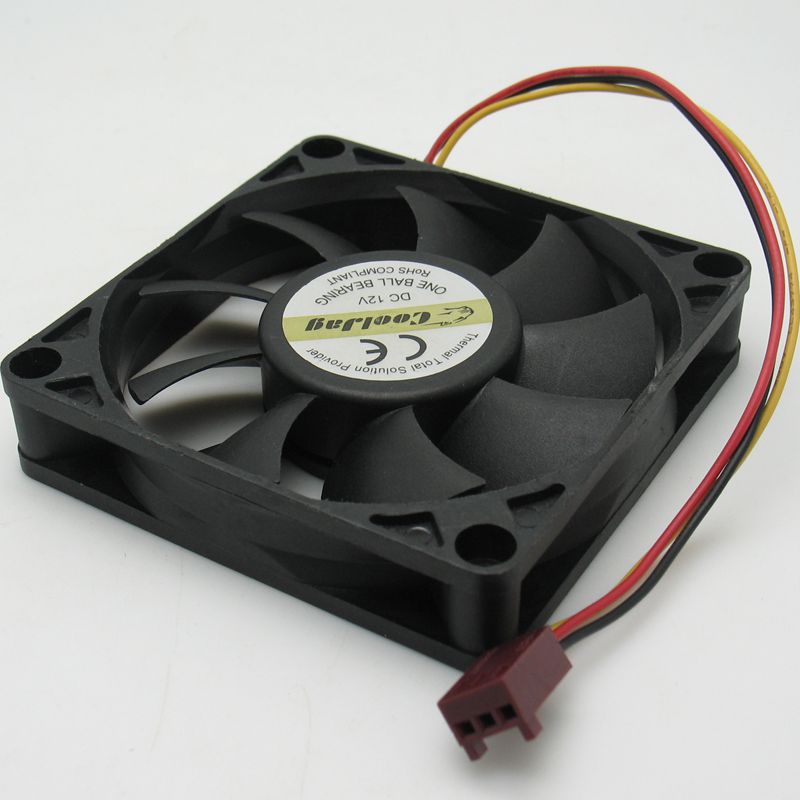

The physical label identifies COOLJAG, not the former Everflow attribution. It prints 12V DC and One ball bearing but no full model or current; three leads reach a brown plug. The complete manufacturer model is not confirmed from the available photographs.
| Label supply | 12V DC |
|---|---|
| Printed bearing wording | One ball bearing |
| Pictured connection | Three leads and brown plug |
Which details identify this version?
Compare the physical brand and assembly with the original label and three leads and brown plug. Similar housings do not establish interchangeability.
Do the wires prove PWM or speed sensing?
No. Lead count and printed model wording alone do not establish signal functions or pinout. Confirm these and the mounting dimensions for the required version.
Compatibility Verification Checklist
Before ordering, please confirm these critical points:
- 1Exact model number on the original fan label
- 2Frame size: length, width and thickness
- 3Rated voltage and current
- 4Connector type and wire sequence
- 5Wire count: 2-wire, 3-wire or 4-wire PWM
- 6Airflow direction and mounting hole position
- 7Cable length and application environment
Still unsure? Send us photos of your fan label, connector and equipment. We will help check compatibility before you order.
Datasheet / Drawing
Use official documents and dimensional references when available. If a document is missing, contact us before ordering for replacement matching support.
Bulk Order
For repair batches, OEM projects or distributor replenishment, send the model number, target quantity, connector requirements and delivery destination.
Shipping & Returns
Shipping options, lead time and return eligibility may vary by product, quantity and destination. Confirm compatibility before ordering replacement fans.
- For bulk orders, request freight planning and availability confirmation before payment.
- For replacement orders, compare model, size, voltage, current and connector before installation.
- Unused items should remain in original condition for return review according to store policy.
FAQ
Common checks for replacement cooling fan sourcing.
Can you help match an old fan?
Yes. Send photos of the fan label, connector and equipment so we can check model, voltage, frame size and wiring.
Can I use a different brand as a replacement?
Often yes, but only after confirming frame size, electrical rating, airflow requirement, bearing type, connector and wire sequence.
What information is needed for a bulk quote?
Send part number, quantity, target lead time, connector or cable requirements and shipping destination.
