Fan Connector Distribution Board
- Product SKU: CFS-DC-00000-00V-U
Confirm Fit Before Ordering
Use this quick check first, then review the full Product Specifications tab before placing an order.
Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.
Reference model: Not confirmed; complete MPN not shown in available photographs
Product Specifications
Review the technical data used for replacement matching, procurement comparison and engineering approval.
Fan Connector Distribution Board photo and selection notes

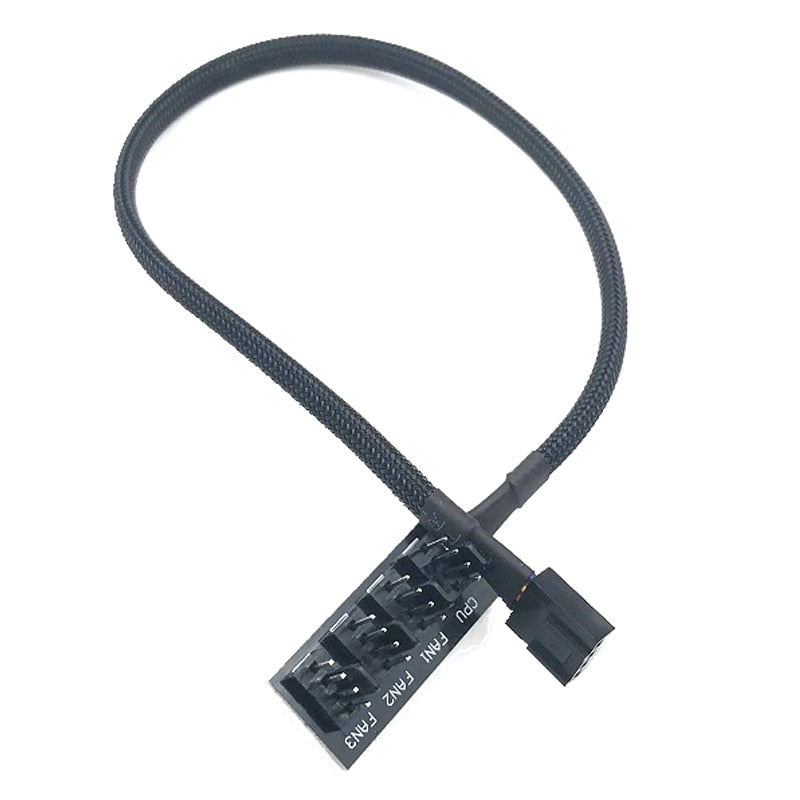

The complete manufacturer model is not confirmed from the available photographs. This is a connector distribution board, not a motorized fan. The photograph labels CPU, FAN1, FAN2 and FAN3 positions. Header appearance does not establish circuit continuity, pinout, current capacity or supported control signals. Manufacturer unconfirmed.
| Pictured connection | four headers labelled CPU/FAN1/FAN2/FAN3; CPU header four contacts, other three headers visibly three contacts in four-position footprint |
|---|
What should I confirm before ordering?
Request the complete manufacturer model and a mounting comparison. The description identifies the pictured item only.
Does this listing establish fan compatibility?
No. Confirm mounting and connection requirements; dimensions and material or electrical specifications are not independently verified.
Compatibility Verification Checklist
Before ordering, please confirm these critical points:
- 1Exact model number on the original fan label
- 2Frame size: length, width and thickness
- 3Rated voltage and current
- 4Connector type and wire sequence
- 5Wire count: 2-wire, 3-wire or 4-wire PWM
- 6Airflow direction and mounting hole position
- 7Cable length and application environment
Still unsure? Send us photos of your fan label, connector and equipment. We will help check compatibility before you order.
