ebm-papst K3G180-AC40-07 Ventilation Fan Assembly
- Product SKU: CFS-U002838
- Category: AC Fans, ebm-papst Cooling Fans
Confirm Fit Before Ordering
Use this quick check first, then review the full Product Specifications tab before placing an order.
Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.
Reference model: CFS-U002838
Product Specifications
Review the technical data used for replacement matching, procurement comparison and engineering approval.
ebm-papst K3G180-AC40-07 Ventilation Fan Assembly
Catalogue reference for the listed model K3G180-AC40-07. Manufacturer document data below applies to that exact catalogue designation. The physical supplied identity and cable version are not independently confirmed.
Manufacturer catalogue reference
| Catalogue supply | 230V AC nominal; 200–240V AC; single phase; 50/60Hz |
|---|---|
| Nominal-data test point | 3250 RPM, 1070W maximum-load data; 5.5A at 200V |
| Size designation | 180mm fan size; not the outer box dimensions |
| Enclosure reference | Use the complete dimensioned drawing on manual page 4 |
| Motor bearing | Ball bearing |
| Protection reference | IP20 in the cited manual |
Pictured selection details

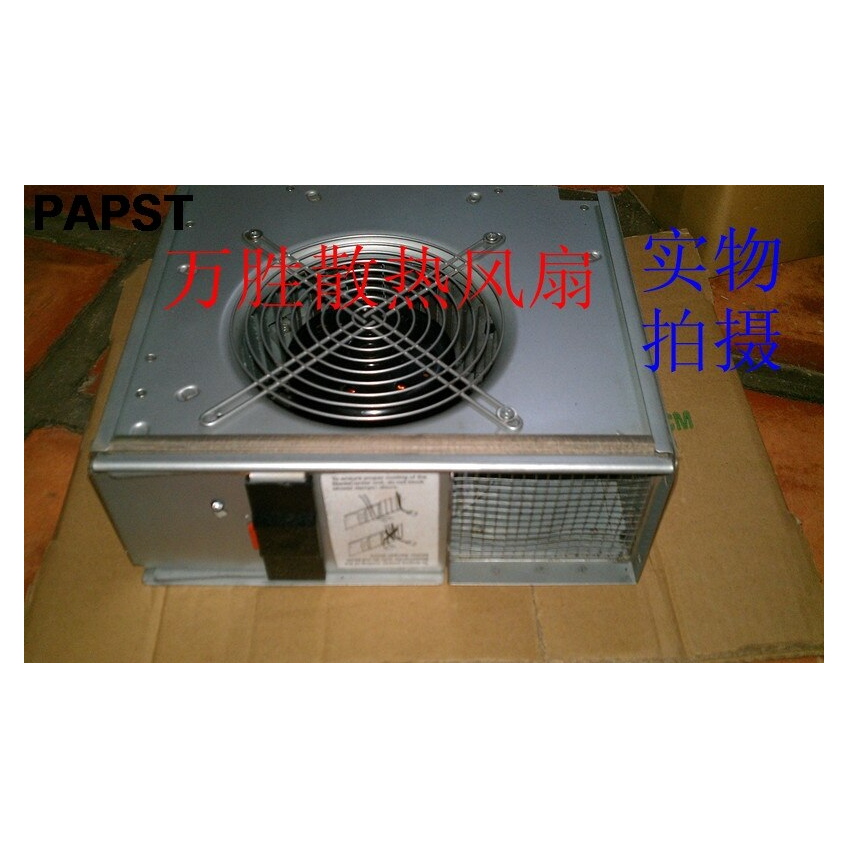

The two listing photographs show a metal enclosure, a circular top guard and a side mesh opening. No complete nameplate can be independently read. The guarded housing resembles the document drawing; resemblance does not verify the supplied version.
Does the fan size describe the enclosure?
No. Compare the full enclosure drawing, mounting clearances and side openings; the size designation is not an outer-box measurement.
Can the manual confirm the supplied connection?
The manual identifies connector housings, but the supplied plugs and exact revision are not independently confirmed. Match the label and connection arrangement before installation.
Compatibility Verification Checklist
Before ordering, please confirm these critical points:
- 1Exact model number on the original fan label
- 2Frame size: length, width and thickness
- 3Rated voltage and current
- 4Connector type and wire sequence
- 5Wire count: 2-wire, 3-wire or 4-wire PWM
- 6Airflow direction and mounting hole position
- 7Cable length and application environment
Still unsure? Send us photos of your fan label, connector and equipment. We will help check compatibility before you order.
Datasheet / Drawing
Use official documents and dimensional references when available. If a document is missing, contact us before ordering for replacement matching support.
Bulk Order
For repair batches, OEM projects or distributor replenishment, send the model number, target quantity, connector requirements and delivery destination.
Shipping & Returns
Shipping options, lead time and return eligibility may vary by product, quantity and destination. Confirm compatibility before ordering replacement fans.
- For bulk orders, request freight planning and availability confirmation before payment.
- For replacement orders, compare model, size, voltage, current and connector before installation.
- Unused items should remain in original condition for return review according to store policy.
FAQ
Common checks for replacement cooling fan sourcing.
Can you help match an old fan?
Yes. Send photos of the fan label, connector and equipment so we can check model, voltage, frame size and wiring.
Can I use a different brand as a replacement?
Often yes, but only after confirming frame size, electrical rating, airflow requirement, bearing type, connector and wire sequence.
What information is needed for a bulk quote?
Send part number, quantity, target lead time, connector or cable requirements and shipping destination.
