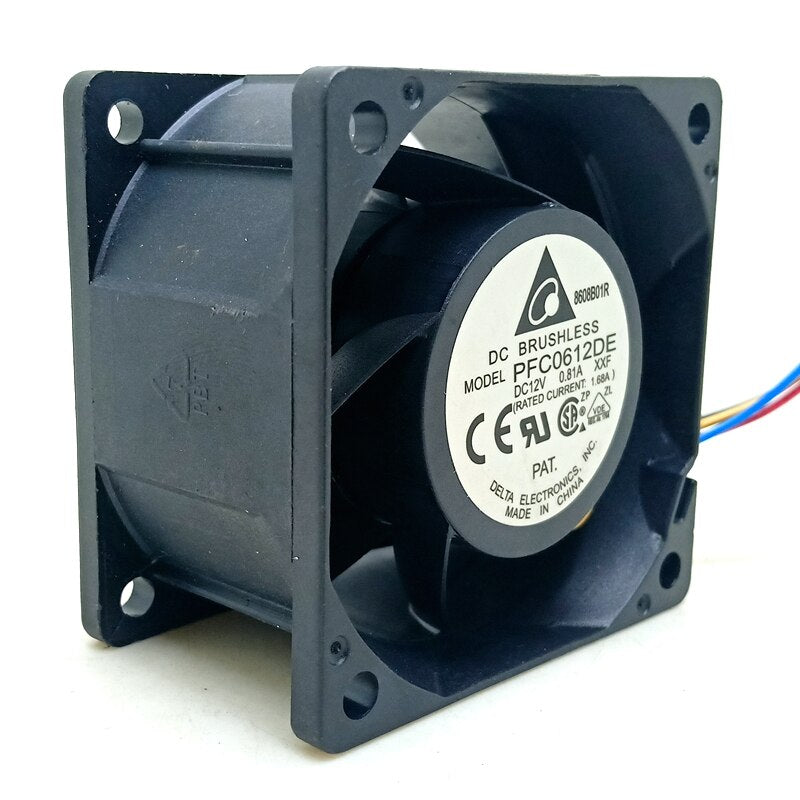

Fan label photo
Delta PFC0612DE 12V DC Cooling Fan, XXF Label
- Product SKU: CFS-U001237
- Category: 12 Volt DC Cooling Fans, DC Brushless Fans, Delta Cooling Fans
Confirm Fit Before Ordering
Use this quick check first, then review the full Product Specifications tab before placing an order.
Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.
Reference model: PFC0612DE
Product Specifications
Review the technical data used for replacement matching, procurement comparison and engineering approval.
Delta PFC0612DE (XXF marking) specifications and selection
The original listing photograph identifies PFC0612DE, 12V DC, with an XXF marking, a 0.81 A marking and a separate RATED CURRENT: 1.68 A marking.
| Model on photographed label | PFC0612DE |
|---|---|
| Voltage on label | 12V DC |
| Current markings | 0.81 A marking; 1.68 A rated current (label) |
| Visible leads | 4; signal assignments and fitted pinout not established |
| Additional label marking | XXF; complete ordering suffix not established |
| Connector appearance | White connector shown; mating pitch and pin assignments require confirmation |
| Dimensions and performance | Not confirmed for this photographed version |
What should I check before ordering?
Compare the full nameplate and fitted connector with the original part. The standard PFC0612DE-F00 document does not establish the specifications of this photographed version. Dimensions, airflow, speed, bearing, electrical signals and equipment compatibility require version-specific confirmation; lead count alone does not establish PWM support.
Original listing photograph: nameplate evidence
For help comparing the full label and connector, send a fan photo.
Compatibility Verification Checklist
Before ordering, please confirm these critical points:
- 1Exact model number on the original fan label
- 2Frame size: length, width and thickness
- 3Rated voltage and current
- 4Connector type and wire sequence
- 5Wire count: 2-wire, 3-wire or 4-wire PWM
- 6Airflow direction and mounting hole position
- 7Cable length and application environment
Still unsure? Send us photos of your fan label, connector and equipment. We will help check compatibility before you order.
Datasheet / Drawing
Use official documents and dimensional references when available. If a document is missing, contact us before ordering for replacement matching support.
Bulk Order
For repair batches, OEM projects or distributor replenishment, send the model number, target quantity, connector requirements and delivery destination.
Shipping & Returns
Shipping options, lead time and return eligibility may vary by product, quantity and destination. Confirm compatibility before ordering replacement fans.
- For bulk orders, request freight planning and availability confirmation before payment.
- For replacement orders, compare model, size, voltage, current and connector before installation.
- Unused items should remain in original condition for return review according to store policy.
FAQ
Common checks for replacement cooling fan sourcing.
Can you help match an old fan?
Yes. Send photos of the fan label, connector and equipment so we can check model, voltage, frame size and wiring.
Can I use a different brand as a replacement?
Often yes, but only after confirming frame size, electrical rating, airflow requirement, bearing type, connector and wire sequence.
What information is needed for a bulk quote?
Send part number, quantity, target lead time, connector or cable requirements and shipping destination.
