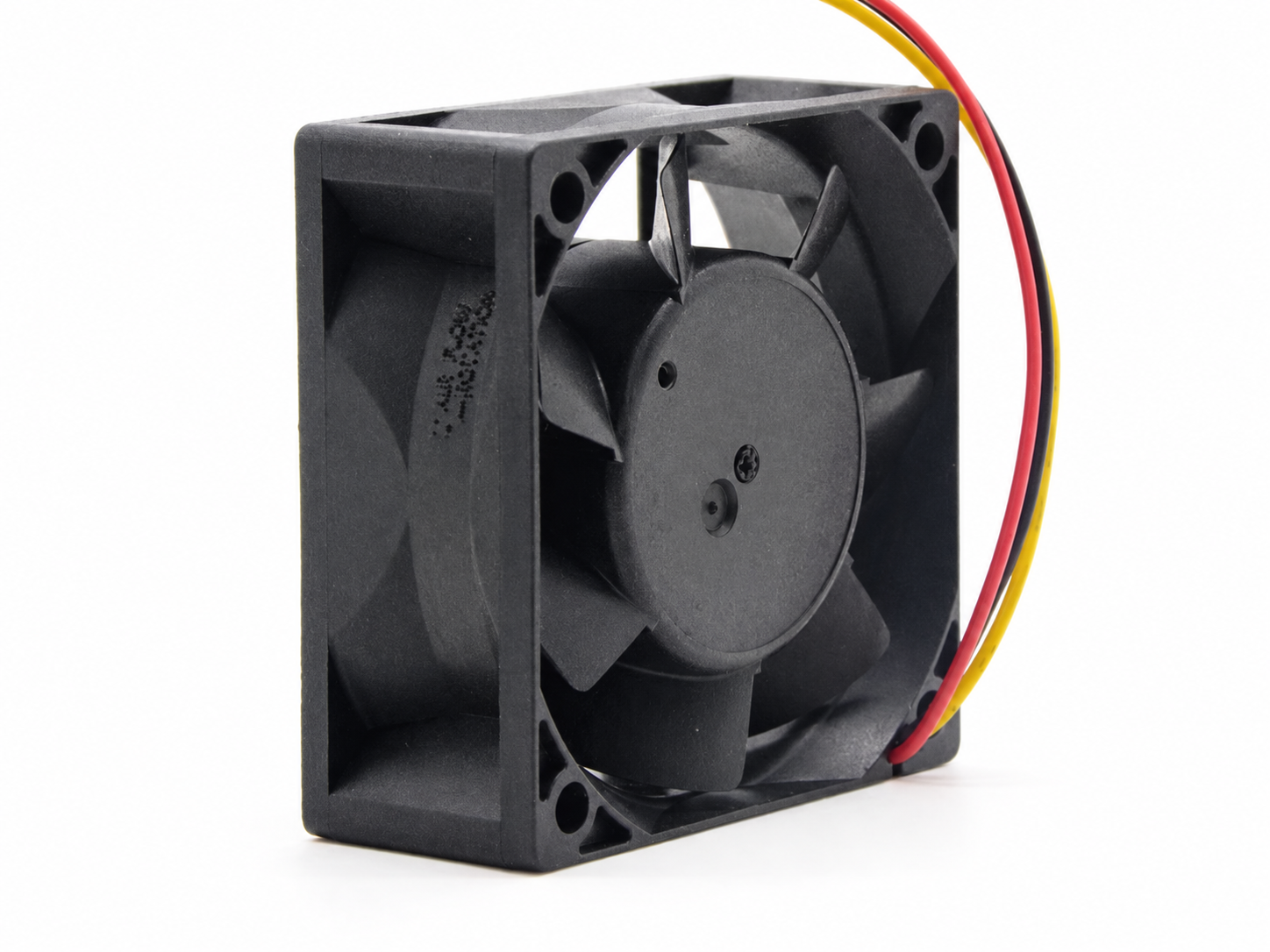

CA2128H01 (merchant-listed) - The two views show the same square fan form from an oblique side and from the front.
CA2128H01 (merchant-listed) - The side view exposes the housing depth between the front and rear mounting faces.
Technical media Confirm label, connector and fit
CA2128H01 (merchant-listed) - The two views show the same square fan form from an oblique side and from the front. Side view

Melco Technorex CA2128H01 Cooling Fan

Available: Confirm availability
Compatibility checkpoint

Confirm Fit Before Ordering

Use this quick check first, then review the full Product Specifications tab before placing an order.

Before ordering: Compare the original fan label, frame size, rated voltage/current, connector, wire count, airflow direction and mounting holes.
Price
$37.79
Need confirmation before ordering?

Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.

Reference model: CFS-U003209

Product Specifications

Review the technical data used for replacement matching, procurement comparison and engineering approval.

Melco Technorex CA2128H01 — selection notes

Existing merchant record: manufacturer Melco Technorex; listed model CA2128H01. This identity is not independently verified from the available photographs. Existing technical parameters remain merchant records, not newly verified specifications.

Visible details in this listing

  • The two views show the same square fan form from an oblique side and from the front.
  • The side view exposes the housing depth between the front and rear mounting faces.
  • Red, yellow and black leads run along the right edge; their ends are not visible in either image.

Selection questions

What should be compared between the two mounting faces?

Check the available depth, fixing-hole spacing and cable clearance in your enclosure; the angled photograph does not provide measurements.

Can I match a harness from the right-side lead routing?

The routing is visible but the termination is not. Request the supplied lead-end view and confirm each wire function instead of inferring it from colour.

Complete manufacturer specifications, the supplied stock version and equipment compatibility remain unconfirmed. Send the original unit label, mounting measurements and connector photographs for a comparison.

Listing photograph used for these observations · Photo matching support

Replacement confirmation

Compatibility Verification Checklist

Before ordering, please confirm these critical points:

  1. 1
    Exact model number on the original fan label
  2. 2
    Frame size: length, width and thickness
  3. 3
    Rated voltage and current
  4. 4
    Connector type and wire sequence
  5. 5
    Wire count: 2-wire, 3-wire or 4-wire PWM
  6. 6
    Airflow direction and mounting hole position
  7. 7
    Cable length and application environment

Still unsure? Send us photos of your fan label, connector and equipment. We will help check compatibility before you order.

Datasheet / Drawing

Use official documents and dimensional references when available. If a document is missing, contact us before ordering for replacement matching support.

Datasheet URL Contact us to confirm
Dimension drawing Contact us to confirm

Bulk Order

For repair batches, OEM projects or distributor replenishment, send the model number, target quantity, connector requirements and delivery destination.

Reference model CFS-U003209
Manufacturer / brand Melco Technorex
Request Bulk Quote

Shipping & Returns

Shipping options, lead time and return eligibility may vary by product, quantity and destination. Confirm compatibility before ordering replacement fans.

  • For bulk orders, request freight planning and availability confirmation before payment.
  • For replacement orders, compare model, size, voltage, current and connector before installation.
  • Unused items should remain in original condition for return review according to store policy.

FAQ

Common checks for replacement cooling fan sourcing.

Can you help match an old fan?

Yes. Send photos of the fan label, connector and equipment so we can check model, voltage, frame size and wiring.

Can I use a different brand as a replacement?

Often yes, but only after confirming frame size, electrical rating, airflow requirement, bearing type, connector and wire sequence.

What information is needed for a bulk quote?

Send part number, quantity, target lead time, connector or cable requirements and shipping destination.
