Delta AFB1212SH-6F82 12V DC Cooling Fan
- Product SKU: CFS-U003251
- Category: 12 Volt DC Cooling Fans, DC Brushless Fans, Delta Cooling Fans
Confirm Fit Before Ordering
Use this quick check first, then review the full Product Specifications tab before placing an order.
Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.
Reference model: AFB1212SH-6F82
Product Specifications
Review the technical data used for replacement matching, procurement comparison and engineering approval.
Delta AFB1212SH-6F82 specifications and selection
The original listing photograph shows Delta model AFB1212SH-6F82, marked 12V DC and 0.8 A. The current is a nameplate value; normal input current and maximum current are not independently confirmed for this exact version.
| Full photographed model | AFB1212SH-6F82 |
|---|---|
| Photographed voltage | 12V DC |
| Nameplate current | 0.8 A (nameplate; nominal and maximum not confirmed) |
| Visible leads | 4 (photograph only; signal function unconfirmed) |
| Dimensions and mounting | Not confirmed for this OEM version |
| Airflow, speed, pressure and noise | Not confirmed for this OEM version |
| Bearing, power and operating-voltage range | Not confirmed for this OEM version |
| Connector and electrical signals | Fitted connector and pinout not confirmed; PWM and feedback functions not established |
What should I check before ordering?
Compare the full label, dimensions, mounting and fitted connector with your existing fan. A matching base model or visible lead count does not establish equipment compatibility or signal functions. Performance specifications from other suffixes are not applied to this version.
Preserved original listing nameplate detail
For help comparing the full label and connector, send a fan photo.
Image 3 preserves the complete original listing nameplate as an unmodified pixel crop: Delta AFB1212SH-6F82, DC12V 0.80A, FTS V26815-B116-V61 and stamp 0728F2R. Original image 1 retains the full original rear view, white connector and harness. This evidence does not establish the supplied unit, batch or pinout; confirm the actual full label and connection before ordering.

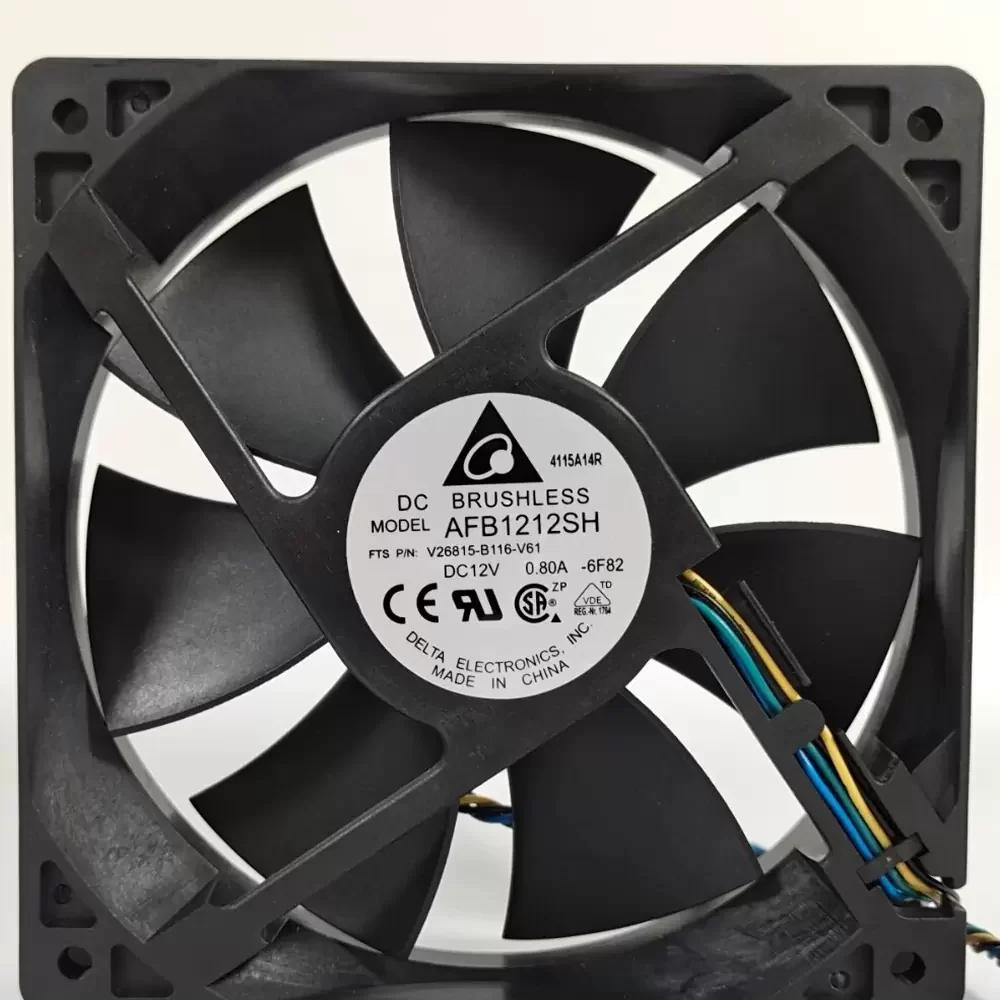

Photo note: Image 2 is an external model-reference photograph of a separate Delta AFB1212SH-6F82 DC12V 0.80A unit from EquipSpares, with FTS part V26815-B116-V61. Its stamp 4115A14R differs from the original listing stamp 0728F2R; other small markings also differ. Original image 1 retains the original full rear view, actual white connector and complete harness; image 3 preserves the complete original listing nameplate as an unmodified crop. The external photograph does not show its wire ends or connector and was taken separately. It does not establish the supplied unit, batch, connector or pinout and is not a photograph of the item to be shipped. Confirm the actual full label and connection before ordering.
