DWPH EFC-09D12M 12V DC Axial Fan
- Product SKU: CFS-U001209
- Category: 12 Volt DC Cooling Fans, DC Brushless Fans
Confirm Fit Before Ordering
Use this quick check first, then review the full Product Specifications tab before placing an order.
Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.
Reference model: EFC-09D12M
Product Specifications
Review the technical data used for replacement matching, procurement comparison and engineering approval.
EFC-09D12M identification and selection
The DWPH nameplates consistently read EFC-09D12M, without the extra D in the previous model. BR is a separate marking.
| Photographed model | EFC-09D12M |
|---|---|
| Label supply | 12V DC |
| Label current | 0.20A |
| Pictured connection | Three leads |
Which details identify this version?
Compare EFC-09D12M with the original label and three leads. Similar housings do not establish interchangeability.
Do the wires prove PWM or speed sensing?
No. Lead count and printed model wording alone do not establish signal functions or pinout. Confirm these and the mounting dimensions for the required version.

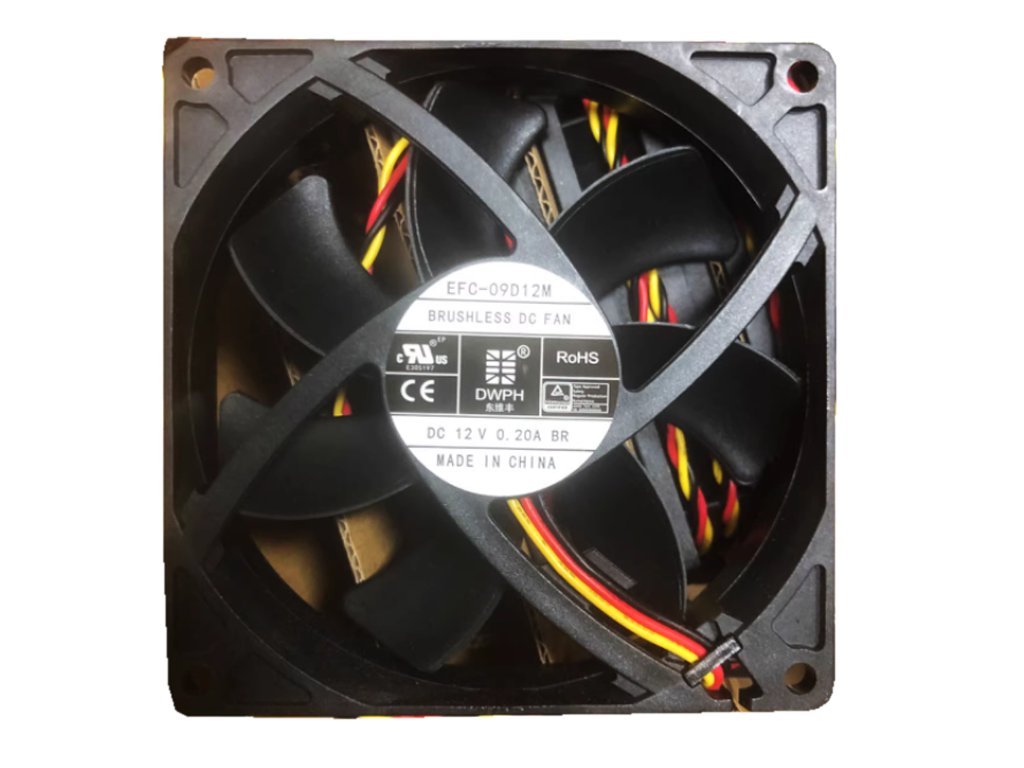

Photo note: Image 4 is an external model-reference photograph of a separate DWPH EFC-09D12M DC12V 0.20A BR unit from PcHub. Original listing photographs remain in images 1, 2 and 3, including the original nameplate, white connector, dimension annotations and front view. The external photograph does not show the wire ends and cannot establish the supplied connector or pinout. It is not a photograph of the unit to be shipped. Confirm the actual full label, connector, wiring and shipment batch before ordering.
Compatibility Verification Checklist
Before ordering, please confirm these critical points:
- 1Exact model number on the original fan label
- 2Frame size: length, width and thickness
- 3Rated voltage and current
- 4Connector type and wire sequence
- 5Wire count: 2-wire, 3-wire or 4-wire PWM
- 6Airflow direction and mounting hole position
- 7Cable length and application environment
Still unsure? Send us photos of your fan label, connector and equipment. We will help check compatibility before you order.
Datasheet / Drawing
Use official documents and dimensional references when available. If a document is missing, contact us before ordering for replacement matching support.
Bulk Order
For repair batches, OEM projects or distributor replenishment, send the model number, target quantity, connector requirements and delivery destination.
Shipping & Returns
Shipping options, lead time and return eligibility may vary by product, quantity and destination. Confirm compatibility before ordering replacement fans.
- For bulk orders, request freight planning and availability confirmation before payment.
- For replacement orders, compare model, size, voltage, current and connector before installation.
- Unused items should remain in original condition for return review according to store policy.
FAQ
Common checks for replacement cooling fan sourcing.
Can you help match an old fan?
Yes. Send photos of the fan label, connector and equipment so we can check model, voltage, frame size and wiring.
Can I use a different brand as a replacement?
Often yes, but only after confirming frame size, electrical rating, airflow requirement, bearing type, connector and wire sequence.
What information is needed for a bulk quote?
Send part number, quantity, target lead time, connector or cable requirements and shipping destination.
