Delta AFB0912HH Axial Fan — Catalogue & Selection Details
- Product SKU: CFS-U000600
- Category: DC Brushless Fans, Delta Cooling Fans
Confirm Fit Before Ordering
Use this quick check first, then review the full Product Specifications tab before placing an order.
Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.
Reference model: AFB0912HH
Product Specifications
Review the technical data used for replacement matching, procurement comparison and engineering approval.
Delta AFB0912HH Axial Fan — Catalogue & Selection Details
Catalogue reference for the listed model AFB0912HH. The manufacturer data below applies to the exact catalogue designation. The physical supplied identity, full revision and cable version are not independently confirmed.
Manufacturer catalogue reference
| Rated supply | 12V DC |
|---|---|
| Operating supply | 7.0–13.8V DC |
| Catalogue outline | 92 x 92 x 25.4mm |
| Input current | 0.25A input; 0.40A maximum |
| Reference speed | 3200 RPM reference |
| Airflow at zero static pressure | 57.92 CFM |
| Pressure at zero airflow | 5.62mmH2O |
| Acoustic noise | 38.0dBA average; 41.0dBA maximum |
| Documented leads | Red positive and black negative bare leads |
Pictured selection details

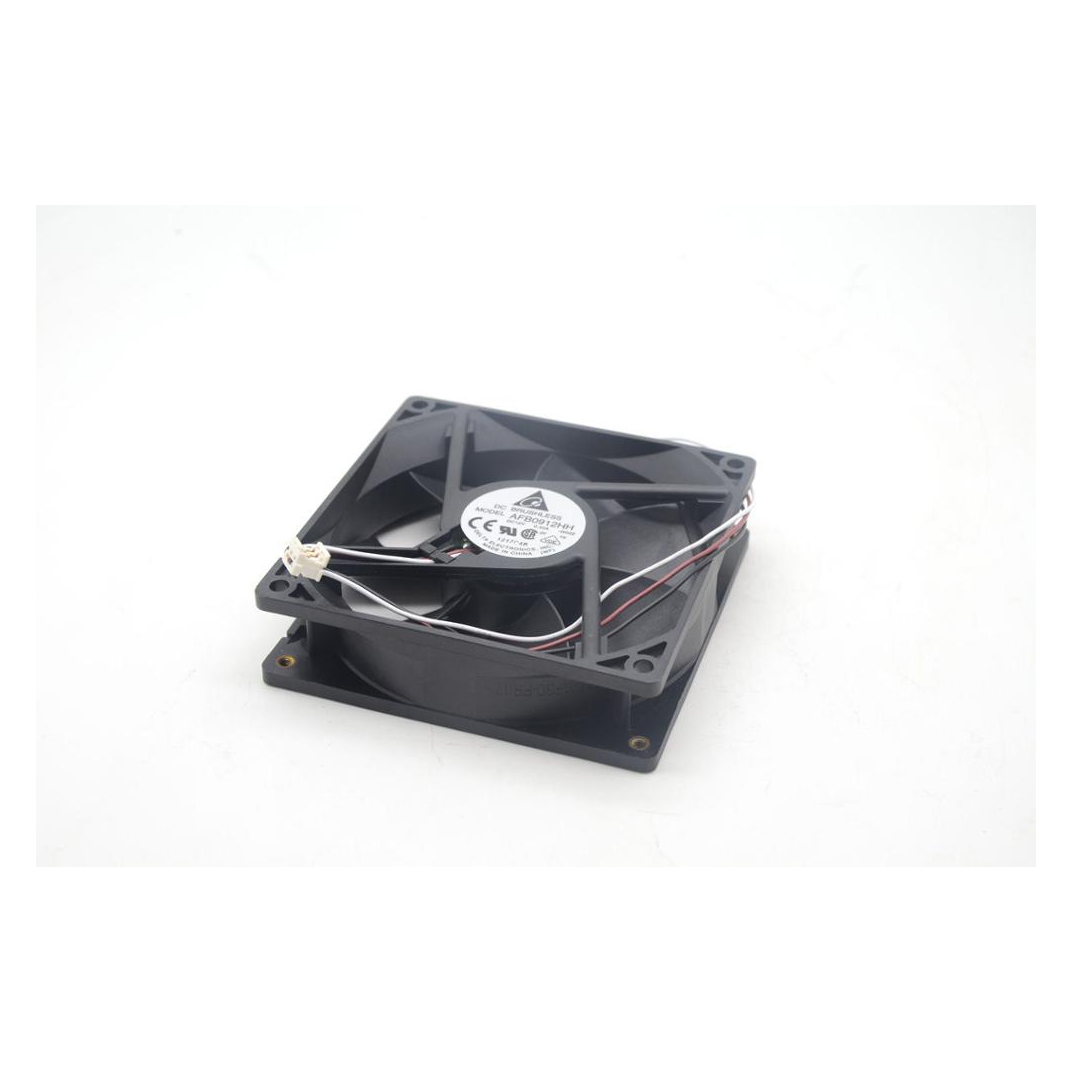

Both views show the black square frame, rear support struts, a looped three-conductor cable and a small pale plug. The rear label reads AFB0912HH. The extra conductor and fitted plug differ from the base catalogue drawing; their function and pin assignment remain unconfirmed.
Which current value applies to the catalogue?
The table lists 0.25A input current with a 0.40A maximum limit. These are different specifications for the same catalogue designation.
Is the pictured plug a guaranteed replacement?
No. Compare connector keying, wire assignment, fixing centres and the complete supplied label. The base document does not establish the extra conductor function.
Compatibility Verification Checklist
Before ordering, please confirm these critical points:
- 1Exact model number on the original fan label
- 2Frame size: length, width and thickness
- 3Rated voltage and current
- 4Connector type and wire sequence
- 5Wire count: 2-wire, 3-wire or 4-wire PWM
- 6Airflow direction and mounting hole position
- 7Cable length and application environment
Still unsure? Send us photos of your fan label, connector and equipment. We will help check compatibility before you order.
Datasheet / Drawing
Use official documents and dimensional references when available. If a document is missing, contact us before ordering for replacement matching support.
Bulk Order
For repair batches, OEM projects or distributor replenishment, send the model number, target quantity, connector requirements and delivery destination.
Shipping & Returns
Shipping options, lead time and return eligibility may vary by product, quantity and destination. Confirm compatibility before ordering replacement fans.
- For bulk orders, request freight planning and availability confirmation before payment.
- For replacement orders, compare model, size, voltage, current and connector before installation.
- Unused items should remain in original condition for return review according to store policy.
FAQ
Common checks for replacement cooling fan sourcing.
Can you help match an old fan?
Yes. Send photos of the fan label, connector and equipment so we can check model, voltage, frame size and wiring.
Can I use a different brand as a replacement?
Often yes, but only after confirming frame size, electrical rating, airflow requirement, bearing type, connector and wire sequence.
What information is needed for a bulk quote?
Send part number, quantity, target lead time, connector or cable requirements and shipping destination.
