Nidec

Nidec D06T-24SS1 03A 60x60x25mm 24V DC 0.18A 3-Wire Axial Cooling Fan

Available: Confirm availability
Compatibility checkpoint

Confirm Fit Before Ordering

Use this quick check first, then review the full Product Specifications tab before placing an order.

Before ordering: Compare the original fan label, frame size, rated voltage/current, connector, wire count, airflow direction and mounting holes.
Confirm availability View full specifications Send fan photos
Price
$18.19
Need confirmation before ordering?

Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.

Request Bulk Quote Ask Compatibility Check Send Fan Photos

Reference model: D06T-24SS1 03A

Product Specifications

Review the technical data used for replacement matching, procurement comparison and engineering approval.

Historical listing photographs: The gallery retains existing views from this listing's historical image set. They are not proof of current shipping stock. Complete original photographs and their source history remain in store records outside the current gallery.

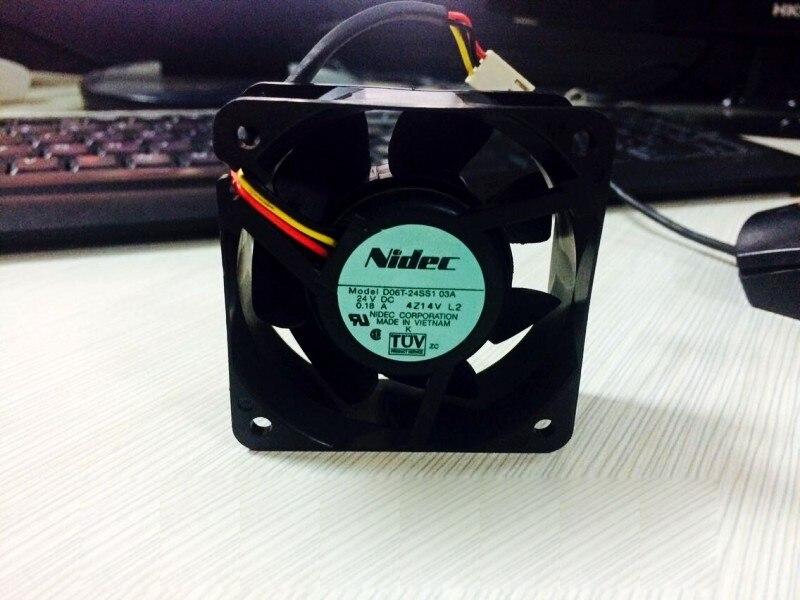

Historical photographed identity: Nidec D06T-24SS1 03A, 24V DC 0.18A. The retained whole labelled rear also shows A4214V L2. The historical views have corresponding housing, three-colour harness and white plug; no pin functions or supplied connector compatibility are established.

Confirm the full supplied model and ordering option, electrical label, measured dimensions, condition, complete harness, connector and pinout before ordering. Historical images do not establish those offered-unit details.

Technical Specifications

Brand Nidec
Mfr. Part Number D06T-24SS1 03A
Frame Size 60x60x25mm
Rated Voltage 24V DC
Rated Current 0.18A
Wire Count 3-wire
Product Category Industrial Cooling Fan

Notice: This is an industrial component. Please verify frame size, voltage, and connector type before replacement.

Replacement confirmation

Compatibility Verification Checklist

Before ordering, please confirm these critical points:

  1. 1
    Exact model number on the original fan label
  2. 2
    Frame size: length, width and thickness
  3. 3
    Rated voltage and current
  4. 4
    Connector type and wire sequence
  5. 5
    Wire count: 2-wire, 3-wire or 4-wire PWM
  6. 6
    Airflow direction and mounting hole position
  7. 7
    Cable length and application environment

Still unsure? Send us photos of your fan label, connector and equipment. We will help check compatibility before you order.

Send Fan Photos Ask for Compatibility Check

Datasheet / Drawing

Use official documents and dimensional references when available. If a document is missing, contact us before ordering for replacement matching support.

Datasheet URL Contact us to confirm
Dimension drawing View drawing image

Bulk Order

For repair batches, OEM projects or distributor replenishment, send the model number, target quantity, connector requirements and delivery destination.

Reference model D06T-24SS1 03A
Manufacturer / brand Nidec
Request Bulk Quote

Shipping & Returns

Shipping options, lead time and return eligibility may vary by product, quantity and destination. Confirm compatibility before ordering replacement fans.

  • For bulk orders, request freight planning and availability confirmation before payment.
  • For replacement orders, compare model, size, voltage, current and connector before installation.
  • Unused items should remain in original condition for return review according to store policy.

FAQ

Common checks for replacement cooling fan sourcing.

Can you help match an old fan?

Yes. Send photos of the fan label, connector and equipment so we can check model, voltage, frame size and wiring.

Can I use a different brand as a replacement?

Often yes, but only after confirming frame size, electrical rating, airflow requirement, bearing type, connector and wire sequence.

What information is needed for a bulk quote?

Send part number, quantity, target lead time, connector or cable requirements and shipping destination.
