ADDA AD1212UB-A73GL 12V 0.50A Four-Lead Fan
- Product SKU: CFS-U000619
- Category: 12 Volt DC Cooling Fans, ADDA Cooling Fans
Confirm Fit Before Ordering
Use this quick check first, then review the full Product Specifications tab before placing an order.
Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.
Reference model: AD1212UB-A73GL
Product Specifications
Review the technical data used for replacement matching, procurement comparison and engineering approval.
ADDA AD1212UB-A73GL 12V 0.50A Four-Lead Fan
The original label reads ADDA AD1212UB-A73GL, 12V DC and 0.50A, with a separate (B) marking. Four coloured leads run to a white connector. Keep A73GL distinct from A71GL and A72GL ordering options.
| Photographed model | AD1212UB-A73GL |
|---|---|
| Nameplate input | 12V DC, 0.50A |
| Visible harness | Four coloured leads and white four-position plug |
| Mechanical reference | 120x120x25mm in merchant and related -LF distributor records; actual mounting unconfirmed |
Does the A73GL reference establish the supplied connector or control protocol?
The photographed harness is the matching reference for this listing. A manufacturer table for A71GL or a distributor -LF entry does not prove identical control, bearing count or performance. Compare the plug face, lead assignment and frame depth before installation.
External model reference photograph; Original photograph 2; Original photograph 3; Mouser related -LF option
Send the complete label, connector and mounting photos for matching help. For multiple units, request a quantity quote.

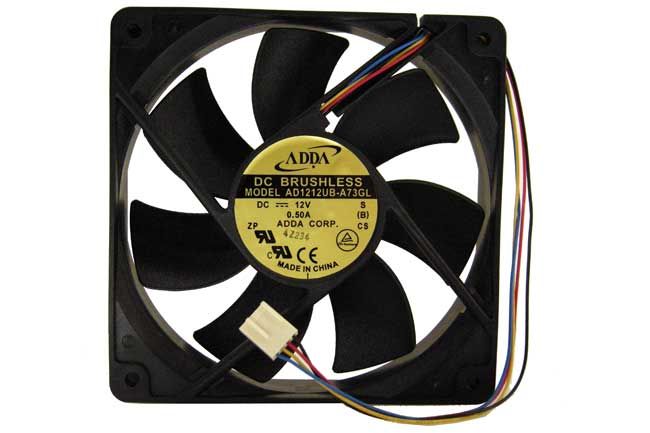

Photo note: Image 2 is an external model-reference photograph of a separate ADDA AD1212UB-A73GL 12V 0.50A S(B)CS unit from CWC Group. The original listing photographs remain in images 1 and 3. Both show red, black, yellow and blue leads and a white four-position connector. Manufacturing stamps differ; confirm the supplied connector pitch, pinout, cable length and shipment batch before ordering.
Compatibility Verification Checklist
Before ordering, please confirm these critical points:
- 1Exact model number on the original fan label
- 2Frame size: length, width and thickness
- 3Rated voltage and current
- 4Connector type and wire sequence
- 5Wire count: 2-wire, 3-wire or 4-wire PWM
- 6Airflow direction and mounting hole position
- 7Cable length and application environment
Still unsure? Send us photos of your fan label, connector and equipment. We will help check compatibility before you order.
Datasheet / Drawing
Use official documents and dimensional references when available. If a document is missing, contact us before ordering for replacement matching support.
Bulk Order
For repair batches, OEM projects or distributor replenishment, send the model number, target quantity, connector requirements and delivery destination.
Shipping & Returns
Shipping options, lead time and return eligibility may vary by product, quantity and destination. Confirm compatibility before ordering replacement fans.
- For bulk orders, request freight planning and availability confirmation before payment.
- For replacement orders, compare model, size, voltage, current and connector before installation.
- Unused items should remain in original condition for return review according to store policy.
FAQ
Common checks for replacement cooling fan sourcing.
Can you help match an old fan?
Yes. Send photos of the fan label, connector and equipment so we can check model, voltage, frame size and wiring.
Can I use a different brand as a replacement?
Often yes, but only after confirming frame size, electrical rating, airflow requirement, bearing type, connector and wire sequence.
What information is needed for a bulk quote?
Send part number, quantity, target lead time, connector or cable requirements and shipping destination.
