LGA115X-1U3CC Blower and Heatsink Assembly
- Product SKU: CFS-BL-01155-12V-B
- Category: Blower Fans, DC Blower Fans, SXDOOL Cooling Fans
Confirm Fit Before Ordering
Use this quick check first, then review the full Product Specifications tab before placing an order.
Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.
Reference model: CFS-BL-01155-12V-B
Product Specifications
Review the technical data used for replacement matching, procurement comparison and engineering approval.
LGA115X-1U3CC: assembly identification

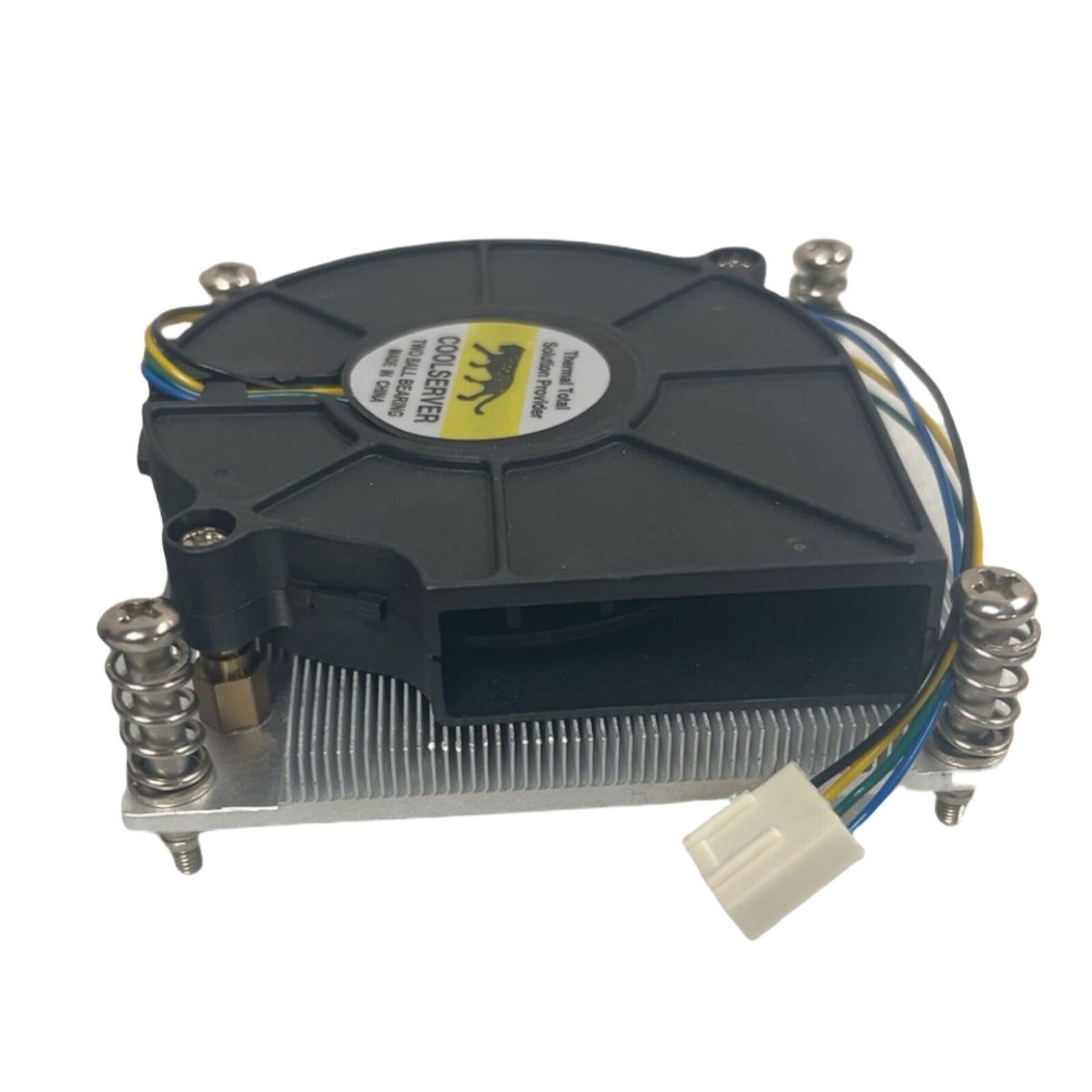

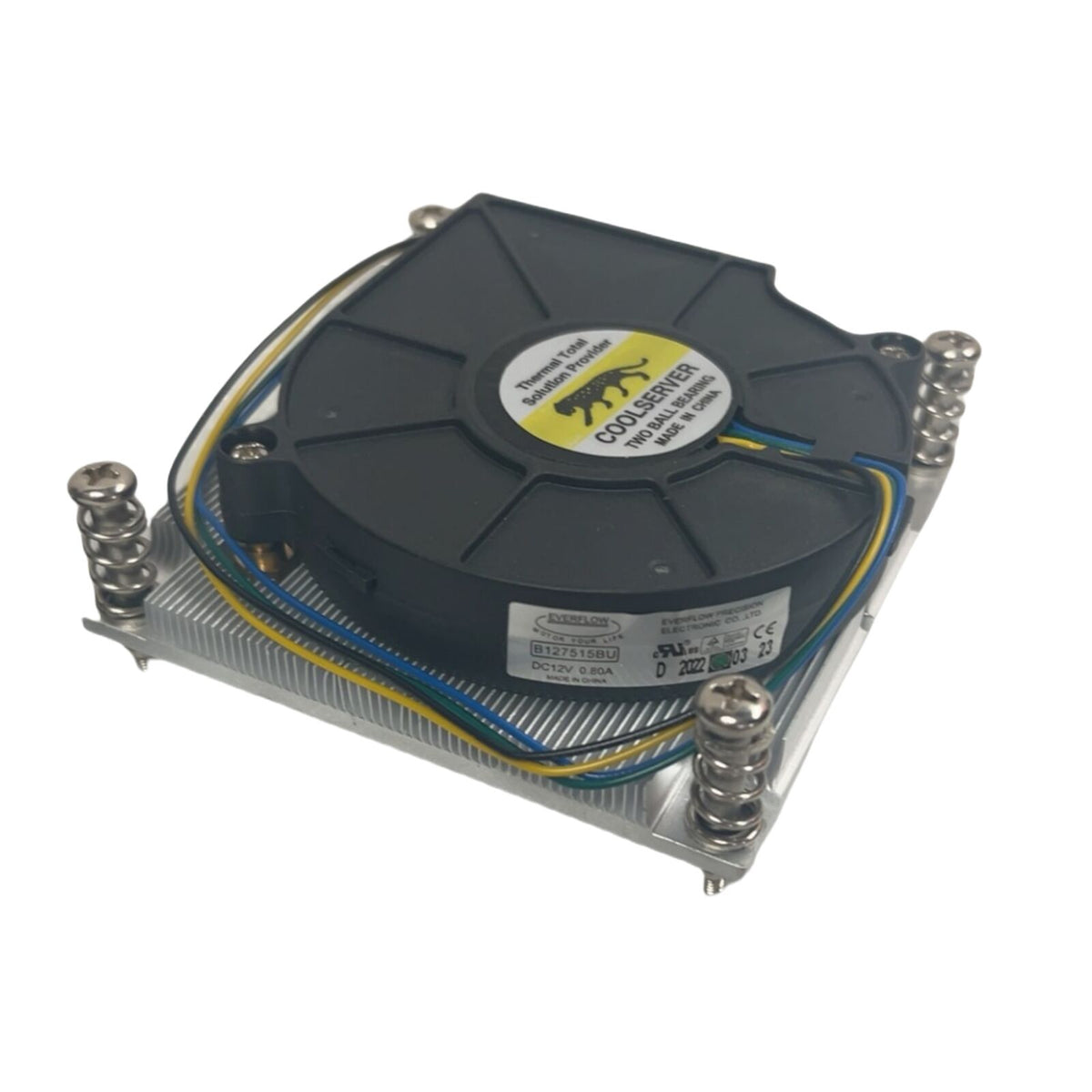

This listing uses LGA115X-1U3CC as its assembly identifier. The existing photos show a blower mounted on a heatsink with spring-loaded screws. The assembly sticker reads COOLSERVER; the separate blower label reads EVERFLOW B127515BU.
| Listing assembly identifier | LGA115X-1U3CC |
|---|---|
| Photographed blower model | EVERFLOW B127515BU |
| Blower electrical label | DC 12V, 0.80A |
| Assembly bearing marking | TWO BALL BEARING |
| Photographed connector | Four wires and a white 4-position connector |
| Assembly dimensions and socket fit | Confirm mounting pattern, overall height and clearance before ordering |
Does the listing name establish socket compatibility?
No. Compare the mounting-hole spacing, screw arrangement, backplate and heatsink contact area with your board. No measured assembly drawing is included here.
Is the four-wire connection interchangeable?
The photo establishes the visible connector and wire count only. Confirm the pinout and control requirements with the original assembly; wire colours alone do not establish compatibility.
Send label and connector photos for identification help. For multiple units, request a bulk quote with the quantity and destination.
Compatibility Verification Checklist
Before ordering, please confirm these critical points:
- 1Exact model number on the original fan label
- 2Frame size: length, width and thickness
- 3Rated voltage and current
- 4Connector type and wire sequence
- 5Wire count: 2-wire, 3-wire or 4-wire PWM
- 6Airflow direction and mounting hole position
- 7Cable length and application environment
Still unsure? Send us photos of your fan label, connector and equipment. We will help check compatibility before you order.
Datasheet / Drawing
Use official documents and dimensional references when available. If a document is missing, contact us before ordering for replacement matching support.
Bulk Order
For repair batches, OEM projects or distributor replenishment, send the model number, target quantity, connector requirements and delivery destination.
Shipping & Returns
Shipping options, lead time and return eligibility may vary by product, quantity and destination. Confirm compatibility before ordering replacement fans.
- For bulk orders, request freight planning and availability confirmation before payment.
- For replacement orders, compare model, size, voltage, current and connector before installation.
- Unused items should remain in original condition for return review according to store policy.
FAQ
Common checks for replacement cooling fan sourcing.
Can you help match an old fan?
Yes. Send photos of the fan label, connector and equipment so we can check model, voltage, frame size and wiring.
Can I use a different brand as a replacement?
Often yes, but only after confirming frame size, electrical rating, airflow requirement, bearing type, connector and wire sequence.
What information is needed for a bulk quote?
Send part number, quantity, target lead time, connector or cable requirements and shipping destination.
