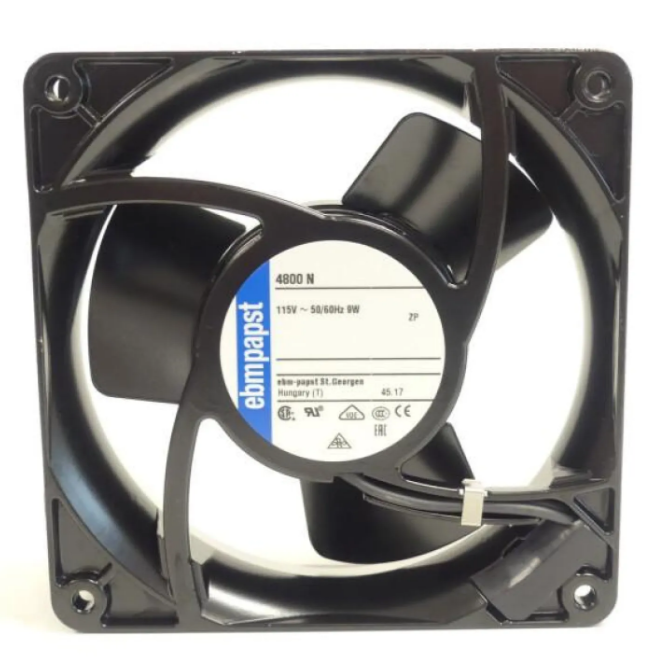

External reference: ebm-papst 4800N, AC115V 50/60Hz 9W, Hungary label; black leads ending outside the frame. Image does not prove the actual shipping unit, condition or supplied connector. Verify full option, dimensions, connector and pinout before ordering; lead count does not establish control functions.
External reference: ebm-papst 4800N, AC115V 50/60Hz 9W, Hungary label; black leads ending outside the frame. Image does not prove the actual shipping unit, condition or supplied connector. Verify full option, dimensions, connector and pinout before ordering; lead count does not establish control functions.
Technical media Confirm label, connector and fit
External reference: ebm-papst 4800N, AC115V 50/60Hz 9W, Hungary label; black leads ending outside the frame. Image does not prove the actual shipping unit, condition or supplied connector. Verify full option, dimensions, connector and pinout before ordering; lead count does not establish control functions. Fan label photo
External reference: ebm-papst 4800N, AC115V 50/60Hz 9W, Hungary label; black leads ending outside the frame. Image does not prove the actual shipping unit, condition or supplied connector. Verify full option, dimensions, connector and pinout before ordering; lead count does not establish control functions. Connector photo
External reference: ebm-papst 4800N, AC115V 50/60Hz 9W, Hungary label; black leads ending outside the frame. Image does not prove the actual shipping unit, condition or supplied connector. Verify full option, dimensions, connector and pinout before ordering; lead count does not establish control functions. Side view
External reference: ebm-papst 4800N, AC115V 50/60Hz 9W, Hungary label; black leads ending outside the frame. Image does not prove the actual shipping unit, condition or supplied connector. Verify full option, dimensions, connector and pinout before ordering; lead count does not establish control functions. Dimension drawing
ebm-papst

ebm-papst 4800N 119x119x38mm 115V AC Axial Cooling Fan

Available: Confirm availability
Compatibility checkpoint

Confirm Fit Before Ordering

Use this quick check first, then review the full Product Specifications tab before placing an order.

Before ordering: Compare the original fan label, frame size, rated voltage/current, connector, wire count, airflow direction and mounting holes.
Confirm availability View full specifications Send fan photos
Price
$40.31
Need confirmation before ordering?

Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.

Request Bulk Quote Ask Compatibility Check Send Fan Photos

Reference model: 4800N

Product Specifications

Review the technical data used for replacement matching, procurement comparison and engineering approval.

External reference: ebm-papst 4800N, AC115V 50/60Hz 9W, with black leads ending outside the frame. The source label says Hungary; the historical PAPST label says Germany. Version equivalence and supplied termination are unverified.

This external reference does not prove the actual shipping unit, condition or supplied connection. Confirm the full option, measured fit, connector and pinout before ordering; lead count does not establish control functions. Historical listing photographs are retained in store records outside this gallery. Source page.

Verified Technical Specifications

Brand ebm-papst
Mfr. Part Number 4800N
Fan Type Single-phase AC axial fan
Dimensions 119x119x38mm
Nominal Voltage 115V AC
Frequency 50/60Hz on physical label; official nominal performance below is at 60Hz
Power 9W
Speed 1750 RPM at 60Hz
Airflow 97 m3/h at 60Hz
Noise 32 dB(A) at 60Hz
Bearing Sintec sleeve bearing
Connection 2 flat plugs, 3.0 x 0.5mm; housing grounding lugs

Replacement notice: Match the complete 4800N model, 115V AC supply, frequency, 119x119x38mm frame and original terminals. Rated current and static pressure are intentionally omitted because exact values were not verified.

Replacement confirmation

Compatibility Verification Checklist

Before ordering, please confirm these critical points:

  1. 1
    Exact model number on the original fan label
  2. 2
    Frame size: length, width and thickness
  3. 3
    Rated voltage and current
  4. 4
    Connector type and wire sequence
  5. 5
    Wire count: 2-wire, 3-wire or 4-wire PWM
  6. 6
    Airflow direction and mounting hole position
  7. 7
    Cable length and application environment

Still unsure? Send us photos of your fan label, connector and equipment. We will help check compatibility before you order.

Send Fan Photos Ask for Compatibility Check

Datasheet / Drawing

Use official documents and dimensional references when available. If a document is missing, contact us before ordering for replacement matching support.

Datasheet URL Contact us to confirm
Dimension drawing View drawing image

Bulk Order

For repair batches, OEM projects or distributor replenishment, send the model number, target quantity, connector requirements and delivery destination.

Reference model 4800N
Manufacturer / brand ebm-papst
Request Bulk Quote

Shipping & Returns

Shipping options, lead time and return eligibility may vary by product, quantity and destination. Confirm compatibility before ordering replacement fans.

  • For bulk orders, request freight planning and availability confirmation before payment.
  • For replacement orders, compare model, size, voltage, current and connector before installation.
  • Unused items should remain in original condition for return review according to store policy.

FAQ

Common checks for replacement cooling fan sourcing.

Can you help match an old fan?

Yes. Send photos of the fan label, connector and equipment so we can check model, voltage, frame size and wiring.

Can I use a different brand as a replacement?

Often yes, but only after confirming frame size, electrical rating, airflow requirement, bearing type, connector and wire sequence.

What information is needed for a bulk quote?

Send part number, quantity, target lead time, connector or cable requirements and shipping destination.
