Delta AFC1212DE with Twisted Harness
- Product SKU: CFS-DC-12038-12V-B
- Category: 120x120x38mm Cooling Fans, DC Brushless Fans, Delta Cooling Fans
Confirm Fit Before Ordering
Use this quick check first, then review the full Product Specifications tab before placing an order.
Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.
Reference model: AFC1212DE
Product Specifications
Review the technical data used for replacement matching, procurement comparison and engineering approval.
Delta AFC1212DE with Twisted Harness — selection details
Existing merchant record: manufacturer Delta; listed model AFC1212DE. This identity is not independently verified from the available photographs. Existing technical parameters remain merchant records, not newly verified specifications.
Visible details

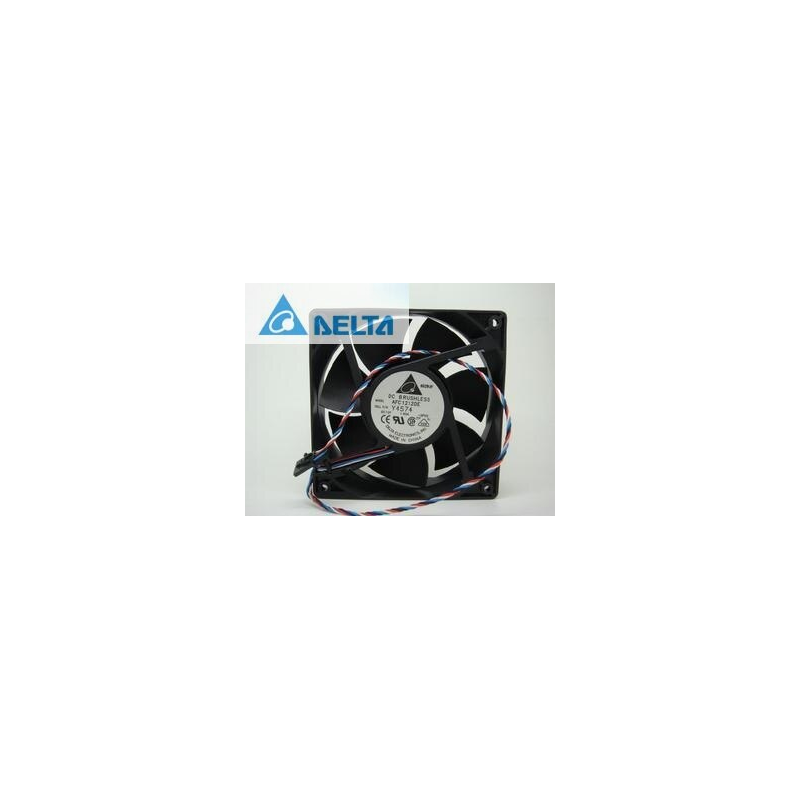

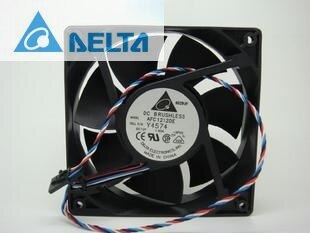

- The rear photograph shows a square black frame and a central Delta label.
- Diagonal support arms cross the blade opening behind the hub.
- A multicoloured twisted harness loops around the frame and terminates in a dark plug.
Selection questions
Does the base AFC1212DE model establish this harness option?
No. Match the complete supplied label, option marking and connector before treating it as an equivalent replacement.
What should be compared around the twisted harness?
Check usable cable length, routing and plug keying against the installation; request the contact-face view and pin assignment.
Confirm the supplied label, mounting measurements, connection, condition and sale quantity before ordering. Complete technical specifications and equipment compatibility remain unconfirmed.
Compatibility Verification Checklist
Before ordering, please confirm these critical points:
- 1Exact model number on the original fan label
- 2Frame size: length, width and thickness
- 3Rated voltage and current
- 4Connector type and wire sequence
- 5Wire count: 2-wire, 3-wire or 4-wire PWM
- 6Airflow direction and mounting hole position
- 7Cable length and application environment
Still unsure? Send us photos of your fan label, connector and equipment. We will help check compatibility before you order.
Datasheet / Drawing
Use official documents and dimensional references when available. If a document is missing, contact us before ordering for replacement matching support.
Bulk Order
For repair batches, OEM projects or distributor replenishment, send the model number, target quantity, connector requirements and delivery destination.
Shipping & Returns
Shipping options, lead time and return eligibility may vary by product, quantity and destination. Confirm compatibility before ordering replacement fans.
- For bulk orders, request freight planning and availability confirmation before payment.
- For replacement orders, compare model, size, voltage, current and connector before installation.
- Unused items should remain in original condition for return review according to store policy.
FAQ
Common checks for replacement cooling fan sourcing.
Can you help match an old fan?
Yes. Send photos of the fan label, connector and equipment so we can check model, voltage, frame size and wiring.
Can I use a different brand as a replacement?
Often yes, but only after confirming frame size, electrical rating, airflow requirement, bearing type, connector and wire sequence.
What information is needed for a bulk quote?
Send part number, quantity, target lead time, connector or cable requirements and shipping destination.
