SXDOOL SXDE28080BTM EC Axial Fan AC 110-240V 130W
- Product SKU: CFS-EC-28080-EC-B
- Category: 280x280x80mm Cooling Fans, 80x80x80mm Cooling Fans, EC Fans, SXDOOL Cooling Fans
Confirm Fit Before Ordering
Use this quick check first, then review the full Product Specifications tab before placing an order.
Share the original fan label, connector photo, or target quantity so the team can check compatibility or quote bulk supply.
Reference model: SXDE28080BTM
Product Specifications
Review the technical data used for replacement matching, procurement comparison and engineering approval.
SXDE28080BTM: values on the product label

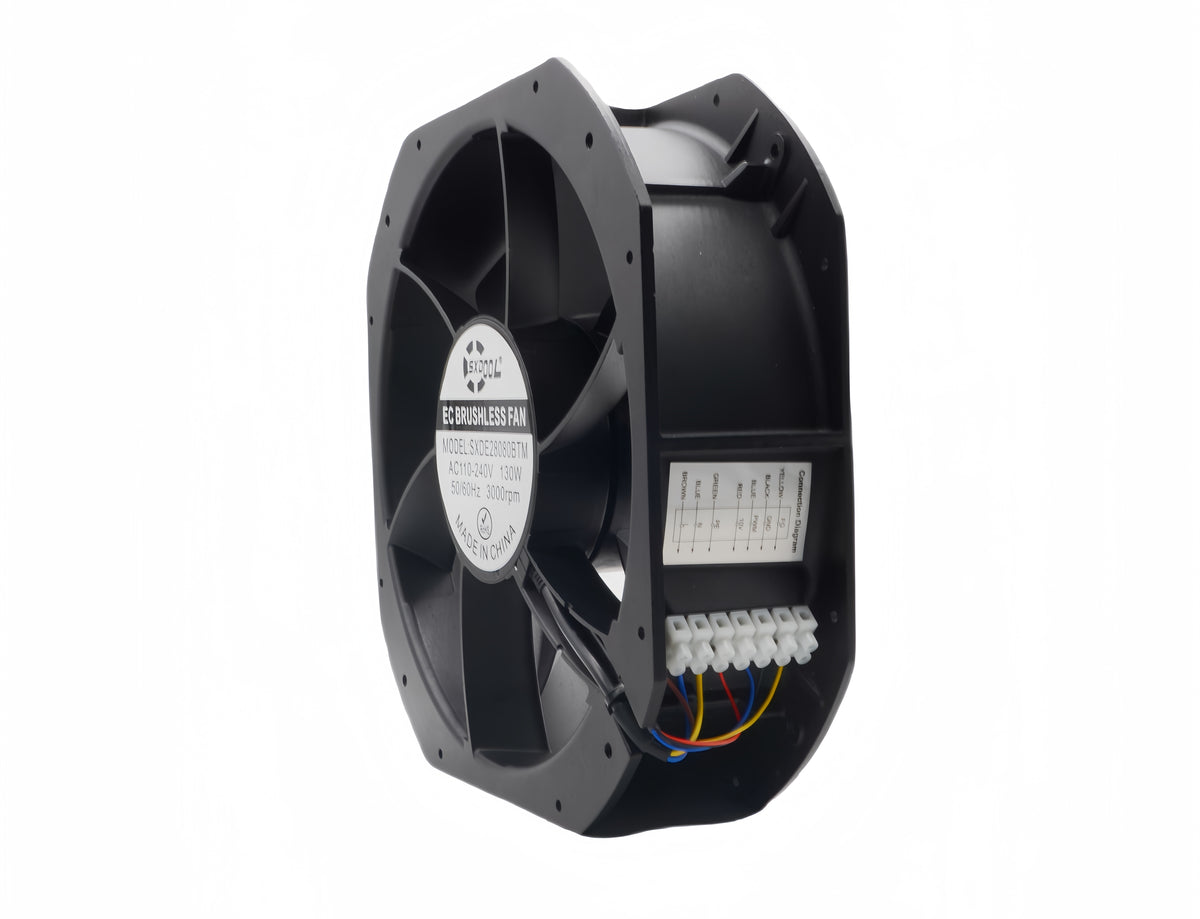

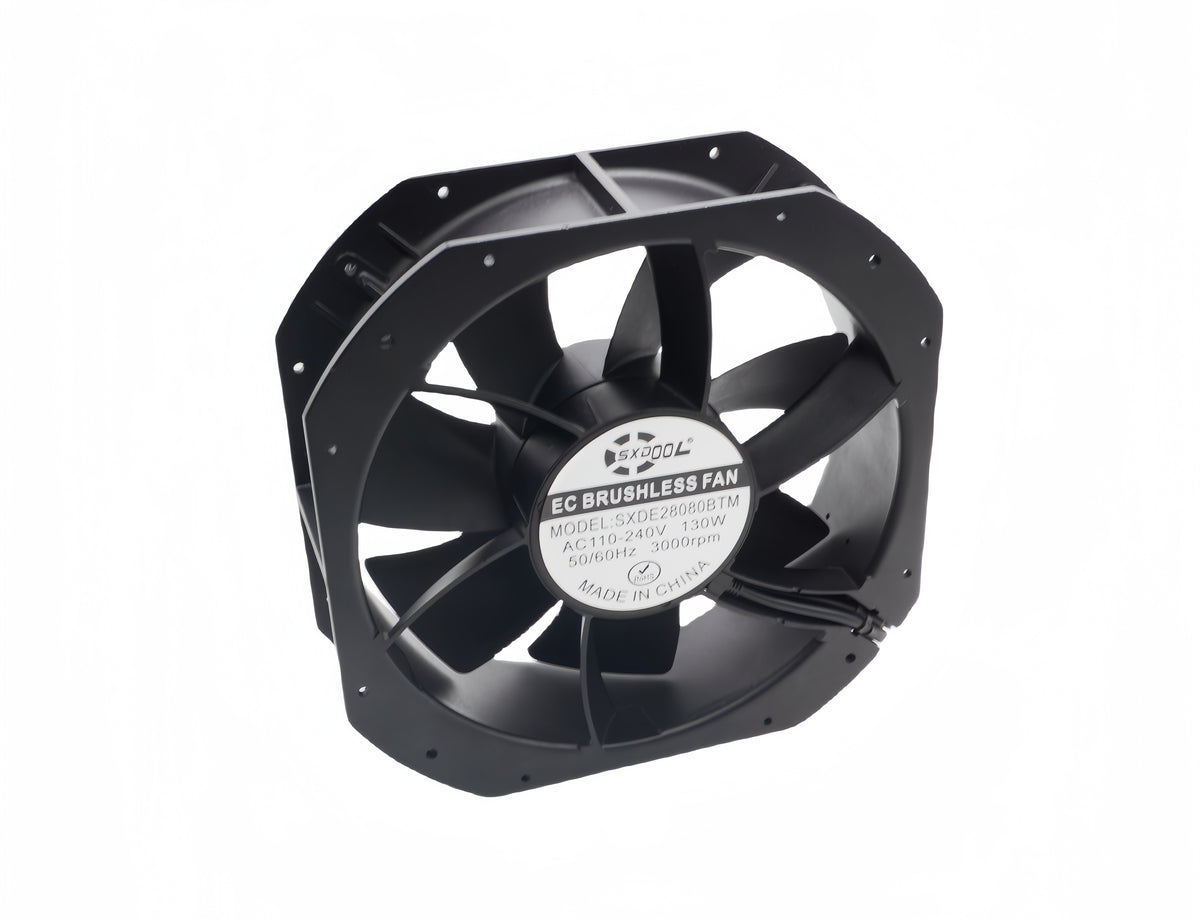

The clear product photos show a SXDOOL SXDE28080BTM EC brushless fan with a terminal block. The values below come from the photographed nameplate.
| Model on label | SXDE28080BTM |
|---|---|
| Brand on label | SXDOOL |
| Input on label | AC 110-240V |
| Power on label | 130W |
| Frequency on label | 50/60Hz |
| Speed on label | 3000rpm |
| Connection shown | Terminal block with an attached connection diagram |
| Mounting dimensions | Listed as 280x280x80mm; verify the outline and mounting holes before ordering |
Which input rating should I use?
Use the nameplate on the unit being supplied. The photographed label reads AC 110-240V. Some earlier gallery graphics state a different lower limit; confirm the nameplate if your application depends on that limit.
How should the control connection be checked?
Match the terminal markings and control requirements to your equipment. The visible connection diagram does not establish compatibility with every controller.
Send label and connector photos for identification help. For multiple units, request a bulk quote with the quantity and destination.
